The UL Certification Pathway for BESS: In the rapidly expanding world of renewable energy, Battery Energy Storage Systems (BESS) are no longer a novelty; they are a critical component of our modern grid infrastructure. From small-scale commercial installations to massive utility-sized projects, these systems play a vital role in balancing power supply and demand. But with great power comes great responsibility—and in the case of BESS, that responsibility is safety.
Navigating the maze of safety standards can be a daunting task for project developers, engineers, and even investors. This is where UL certification steps in. As the global gold standard for product safety, Underwriters Laboratories (UL) has developed a comprehensive, tiered system of standards to ensure that BESS are not just efficient, but also safe from the ground up. This article will serve as your ultimate guide, breaking down the intricate journey from a single lithium-ion cell to a complete, certified energy storage installation.

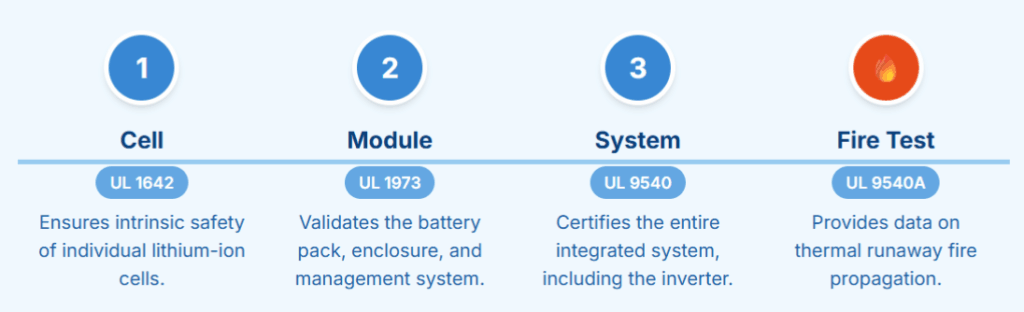

The UL Certification Pathway for BESS: The Hierarchical Path to Safety
This visual represents how the UL standards build upon each other, from the smallest component to the complete system.
The UL Certification Pathway for BESS Step 1: The Cell (UL 1642)
The foundation of BESS safety lies in the individual cell. This standard subjects cells to a battery of stress tests to prevent fires or explosions under fault conditions.
UL 1642 for the Individual Cell
Every BESS begins with a single, unassuming building block: the lithium-ion cell. While it may be small, a failure at this level can trigger a catastrophic chain reaction known as thermal runaway. This is why the first and most fundamental safety standard is UL 1642. This certification is dedicated exclusively to evaluating the safety of lithium-ion batteries and cells, ensuring they can withstand a variety of electrical, mechanical, and environmental stresses without becoming a hazard.

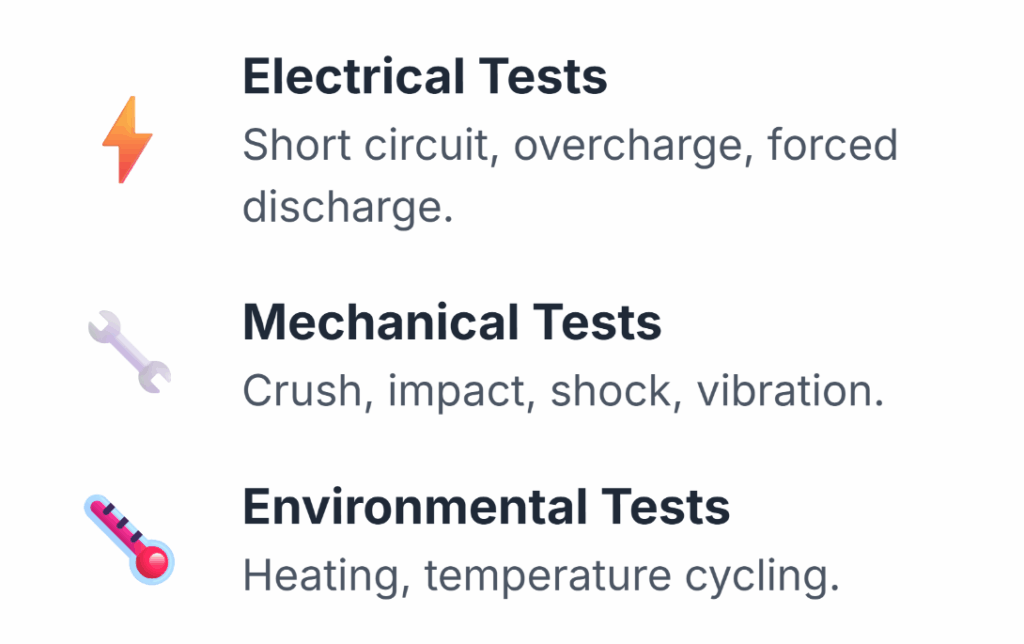

Think of UL 1642 as the first line of defense. It’s a rigorous gauntlet of tests designed to push the cell to its breaking point. These tests are not for show; they are based on real-world fault conditions that can occur in the field.
- Electrical Tests: These are designed to test the cell’s resilience to common electrical faults. The short circuit test, for example, simulates an external short to ensure the cell’s internal protective mechanisms can prevent it from overheating, venting, or exploding. The overcharge test pushes the cell beyond its rated voltage, a scenario that could happen due to a charging system failure. A certified cell must demonstrate it can safely manage this stress.
- Mechanical Tests: A cell must be durable enough to withstand physical abuse, both during transport and in its final installation. The crush test and impact test are straightforward but brutal, simulating a heavy object falling on the battery or a crushing force. Similarly, vibration and shock tests ensure the cell remains structurally sound during shipping and over its operational lifespan.
- Environmental Stress: Batteries operate in diverse climates, so they must be able to handle extreme temperatures. The heating test checks the cell’s response to external heat, while temperature cycling tests its durability against rapid shifts from cold to hot.
A cell that successfully passes the demanding requirements of UL 1642 has proven its intrinsic safety. It has earned its right to be considered for the next stage of integration.
Increasing Complexity

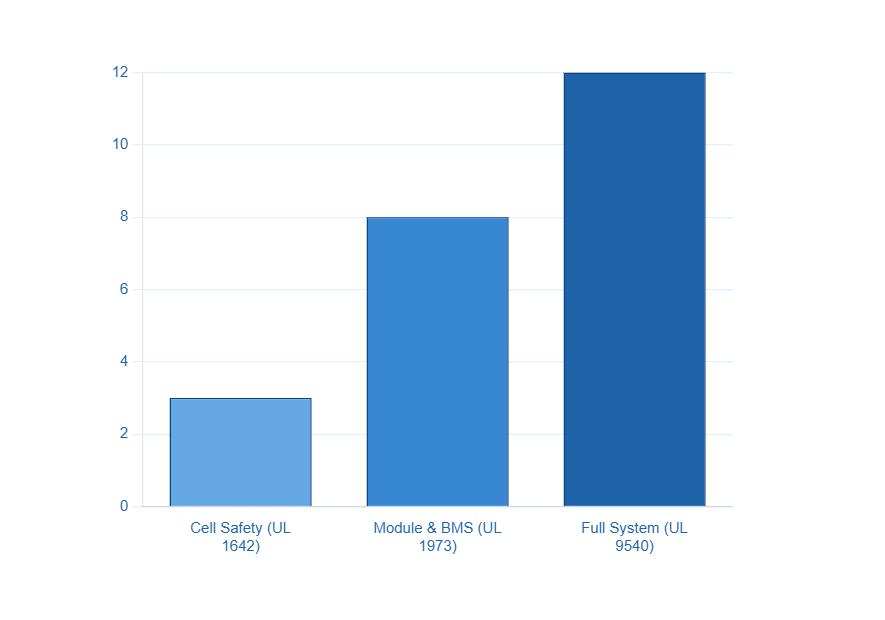

As components are integrated, the scope of safety testing expands significantly to cover system-level interactions and the crucial Battery Management System (BMS). This chart illustrates the progression of testing complexity.
The UL Certification Pathway for BESS Step 2 & 3: Module & System
UL 1973 certifies the module and its BMS, while UL 9540 validates the entire BESS, including the Power Conversion System (PCS) and controls, ensuring all parts work together safely.
The Building Block: UL 1973 for the Battery Module and Unit
The true power of a BESS comes from connecting hundreds or even thousands of individual cells into a single, cohesive unit. This is where UL 1973 comes in. This standard shifts the focus from the individual cell to the complete battery module or unit. It evaluates the entire assembly, including its Battery Management System (BMS), internal wiring, protective enclosures, and thermal management systems.
While UL 1642 ensures the cell is safe, UL 1973 ensures the module can safely manage the cells within it. It’s an essential layer of protection that validates the BMS—the brain of the battery.
- BMS Validation: A key part of UL 1973 is verifying that the BMS can perform its core functions. Tests include deliberately causing overcharge and over-discharge conditions at the module level to confirm the BMS correctly shuts down the system before a critical failure occurs. The standard also requires tests for imbalanced charging, ensuring the BMS can equalize the voltage of different cells in the module to maintain health and prevent stress on individual components.
- Safety System Verification: What happens if a single cell within a module fails? The single-cell failure test is designed to prove that the module can contain the event and prevent it from cascading to adjacent cells. This is a crucial defense against a widespread thermal runaway event.
- Enclosure and Environmental Integrity: The module’s enclosure is its armor. UL 1973 includes a series of tests to validate its physical and environmental resilience. The drop test and impact test ensure the enclosure can protect the cells from external forces. For outdoor applications, the salt fog test checks for corrosion resistance, while the IP (Ingress Protection) rating confirms resistance to dust and water, which is critical for projects in humid or harsh climates.
Passing UL 1973 is a monumental achievement, signifying that the battery module is a self-contained, intelligent, and safe component ready for system integration.
The Complete System UL Certification: UL 9540 for the Integrated BESS
The final step in the certification journey is bringing together all the certified components—the UL 1973-listed modules, the power conversion system (inverter), and the overall control systems—into a single, unified BESS. This is the realm of UL 9540. This master standard is the final arbiter of safety, ensuring that all individual pieces work together harmoniously and predictably under all conditions.
UL 9540 is not just a test; it’s a comprehensive system-level evaluation. It addresses the entire installation, from the electrical ratings to the physical placement and fire suppression measures.
- Component Compatibility: A key requirement of UL 9540 is that all major components must be listed and certified. The standard ensures that the inverter is compatible with the battery system, that the wiring is properly rated, and that all safety devices—like fuses and circuit breakers—are correctly integrated.
- System-Level Controls: The system controller is the master orchestrator. UL 9540 verifies that this controller can safely manage the complex interactions between all components. This includes controlling the flow of power, managing system-wide faults, and initiating emergency shutdown procedures when necessary.
- Installation and Environmental Requirements: UL 9540 provides critical guidelines for safe installation. This includes minimum clearances between units, requirements for proper ventilation to dissipate heat and prevent gas buildup, and measures for fluid containment in liquid-cooled systems. For example, local jurisdictions often use UL 9540 as the basis for their fire codes and building permits.
A certified UL 9540 BESS is a stamp of approval that signifies more than just passing tests; it signifies that the entire system has been designed and integrated with safety as the top priority.
The Fire Safety Test: UL Certification UL 9540A for Thermal Runaway Propagation
While UL 9540 covers the complete system, there’s one more crucial standard that is often misunderstood: UL 9540A. This is not a certification to be “passed” or “failed.” It is a test method used to provide data on the fire characteristics of a BESS. Its sole purpose is to gather scientific data on how a thermal runaway event would propagate from a single failing cell throughout the system.
This data is invaluable for first responders and building code officials. It informs crucial fire safety decisions, such as:
- Required spacing between BESS units.
- Ventilation requirements for indoor installations.
- The type and capacity of fire suppression systems needed.
The UL 9540A test is conducted in a methodical, four-level process:
- Cell Level: A single cell is subjected to a forced thermal runaway. The test measures if the event spreads to neighboring cells.
- Module Level: If the cell test shows propagation, an entire module is tested to see if the runaway can spread throughout the module.
- Unit Level: If the module test shows propagation, a full BESS unit or rack is tested. This is a large-scale test that measures key data points like heat release rate and gas composition.
- System Level: In some cases, a full BESS system may be tested to assess the effectiveness of its integrated fire suppression systems (e.g., sprinklers).
The data from UL 9540A is what allows a fire marshal in a place like California or New York to confidently approve a BESS installation. It gives them the technical information they need to write specific building codes that ensure public safety.
Why the UL Certification Pathway Matters
The journey from a UL 1642-certified cell to a UL 9540-certified BESS is more than just a series of tests; it is a meticulous process of engineering validation. By adhering to these rigorous standards, manufacturers demonstrate a commitment to safety, a commitment that provides confidence to developers, installers, and end-users alike.
In a rapidly growing market, UL certification acts as a symbol of reliability and a badge of trust. It streamlines the permitting process for new installations, reduces insurance costs, and ultimately protects lives and property. It’s the assurance that the energy storage system, whether it’s in a data center or a large-scale utility plant, has been built not just for performance, but for safety.
